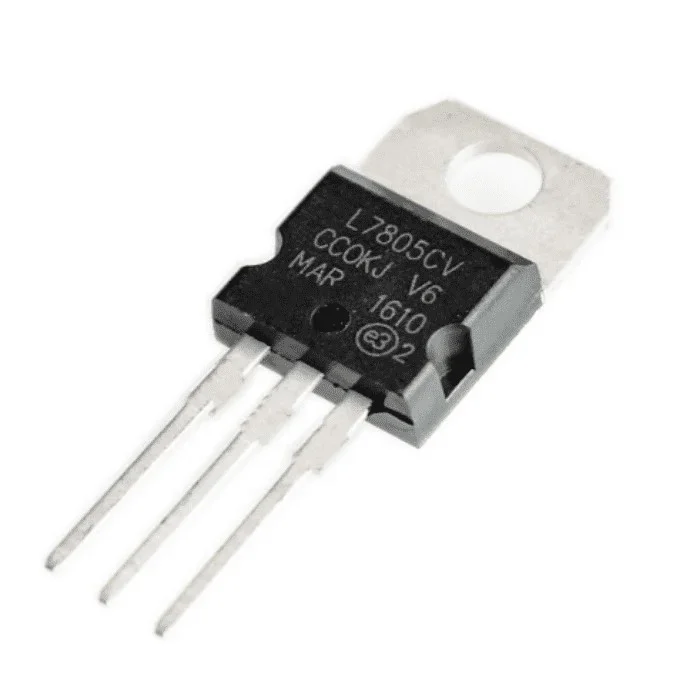

IC 7805 Voltage Regulator | 5V Linear Voltage Regulator IC for Arduino, Power Supply & DIY Electronics

Technical Specifications

• Product Type: Voltage Regulator IC
• Model: 7805
• Output Voltage: 5V DC
• Input Voltage: 7V – 35V DC (recommended range)
• Output Current: Up to 1A (with proper heat sink)
• Package Type: TO-220
• Regulator Type: Linear Voltage Regulator
• Mount Type: Through Hole
• Protection: Thermal Shutdown & Short Circuit Protection
• Application: Power supply circuits, Arduino projects, voltage regulation

Product Description

IC 7805 is a widely used linear voltage regulator that provides a stable 5V output from a higher DC input voltage. It is commonly used in power supply circuits, Arduino projects, and electronic devices that require regulated 5V power.
