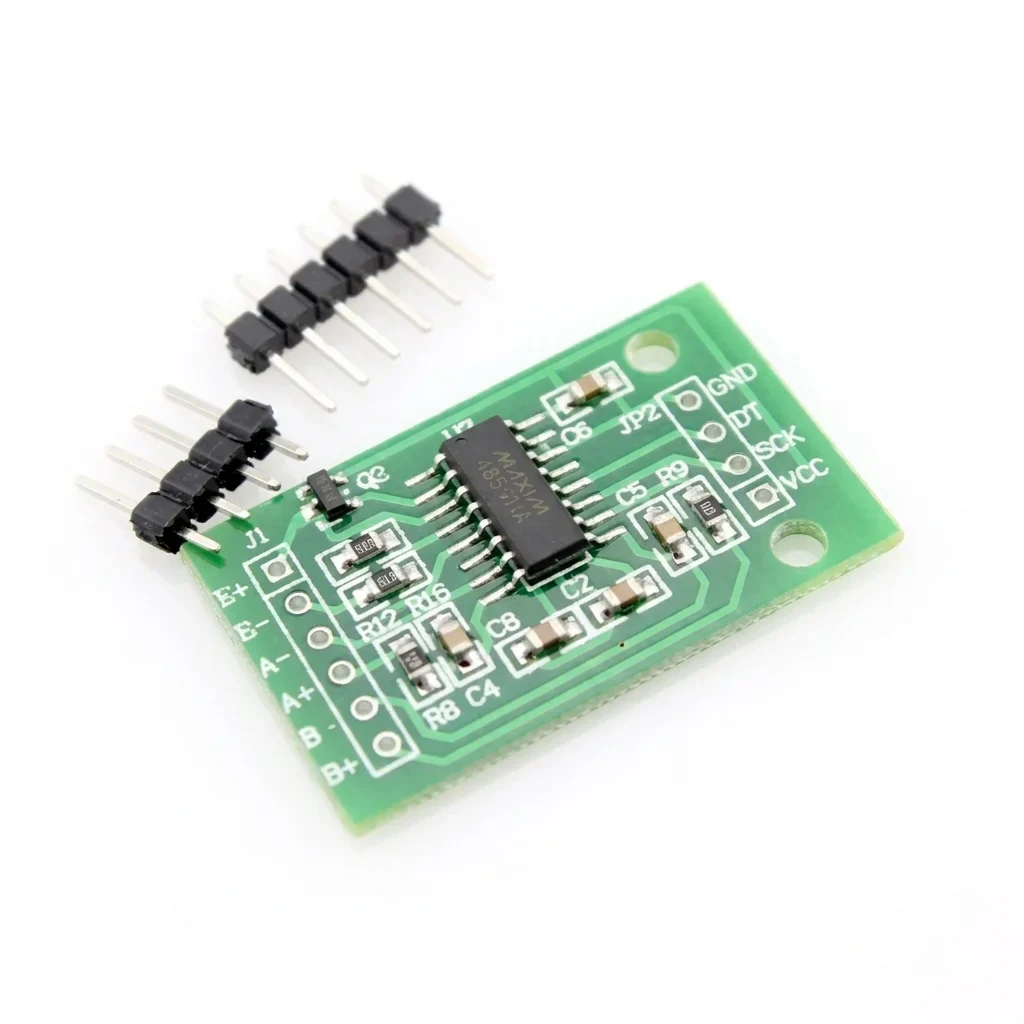

HX711 24-Bit Load Cell Amplifier Sensor Module | Dual Channel Weight Sensor for Arduino, Digital Weighing Scale & IoT Projects

 Technical Specifications

• Model: HX711
• Type: Load Cell Amplifier / 24-bit ADC
• Resolution: 24-bit High Precision
• Channels: Dual Channel (Channel A & B)
• Input Type: Load Cell / Strain Gauge
• Output Sensitivity: 1.0 ± 0.1 mV/V
• Operating Voltage: 2.7V – 5.5V
• Output Data Rate: 10Hz / 80Hz
• Communication Interface: 2-Wire (Clock & Data)
• Gain Options: 32, 64, 128
• Application: Weight measurement, digital scales, force sensing
• Compatible Boards: Arduino, ESP32, Raspberry Pi

Description

The HX711 Load Cell Amplifier Module is a high-precision 24-bit ADC designed for weight measurement applications. It amplifies signals from load cells and provides accurate digital output, making it ideal for Arduino-based weighing scales and IoT projects.
