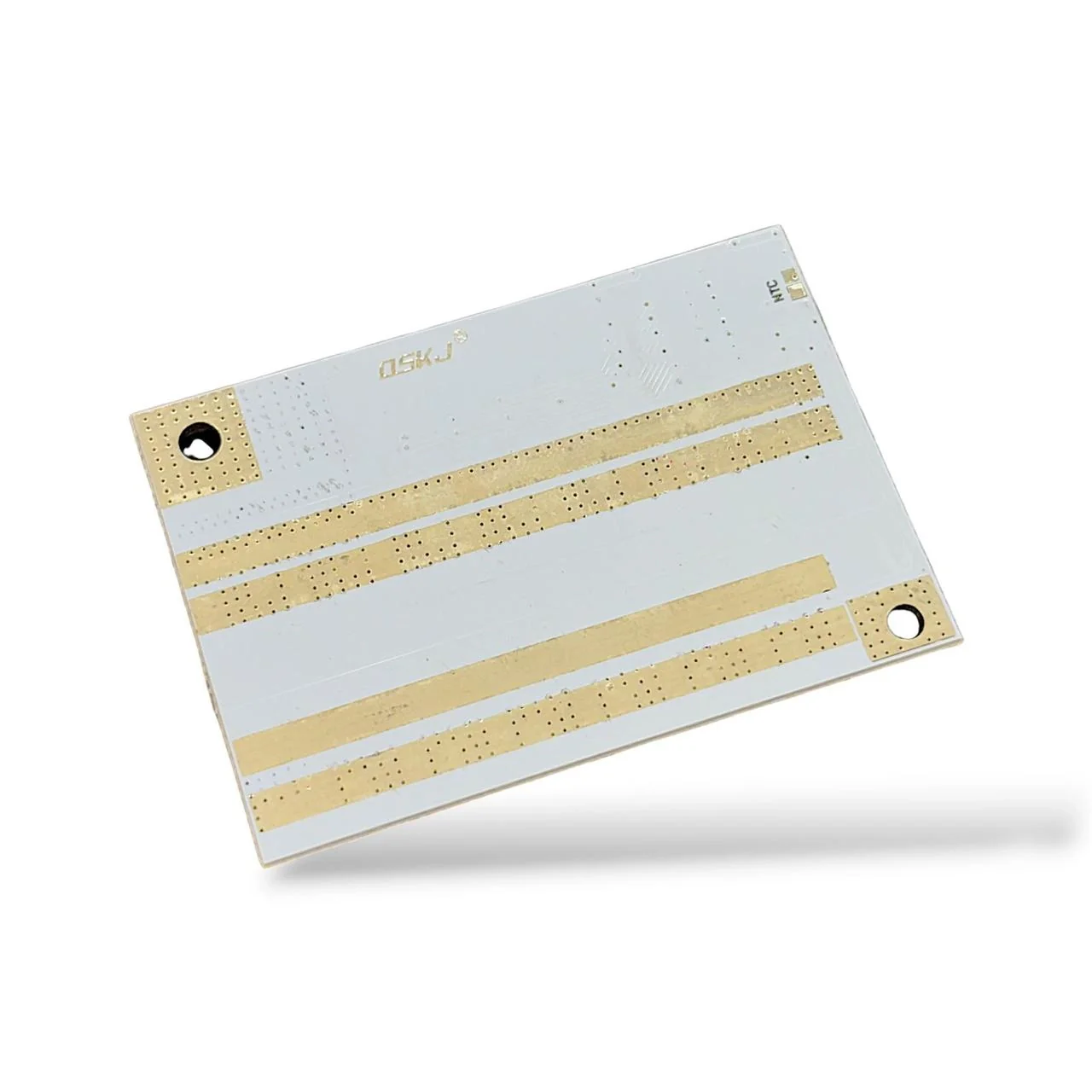

3S 100A LiFePO4 BMS Protection Board with Balance Charging | Battery Management System PCB for 9.6V LiFePO4 Battery Packs

Technical Specifications

• Product Type: Battery Management System (BMS)
• Battery Type Supported: LiFePO4 (Lithium Iron Phosphate)
• Cell Configuration: 3S (3 Cells in Series)
• Nominal Battery Voltage: 9.6V
• Full Charge Voltage: 10.95V (3.65V × 3 Cells)
• Maximum Continuous Current: 100A
• Balance Function: Yes
• Overcharge Protection: Supported
• Over-Discharge Protection: Supported
• Overcurrent Protection: Supported
• Short Circuit Protection: Supported
• PCB Color: White
• Application: Battery packs, solar storage, backup power systems, DIY energy projects

Description

The 3S 100A LiFePO4 BMS Protection Board is a high-performance battery management system designed for 3-cell LiFePO4 battery packs. It features balance charging, overcharge protection, over-discharge protection, overcurrent protection, and short-circuit protection to ensure safe and efficient battery operation.

Current Ratings:

• Common-Port Mode:
  • Continuous Discharge Current: 60A
  • Charging Current: 60A
• Separate-Port Mode:
  • Continuous Discharge Current: 80A
  • Charging Current: 60A

Compatible Battery Types:

• Lithium Manganese Oxide (LMO)
• Ternary Lithium (NMC) batteries

This BMS board is ideal for high-current lithium battery packs used in electric vehicles, energy storage systems, and various portable power applications.
