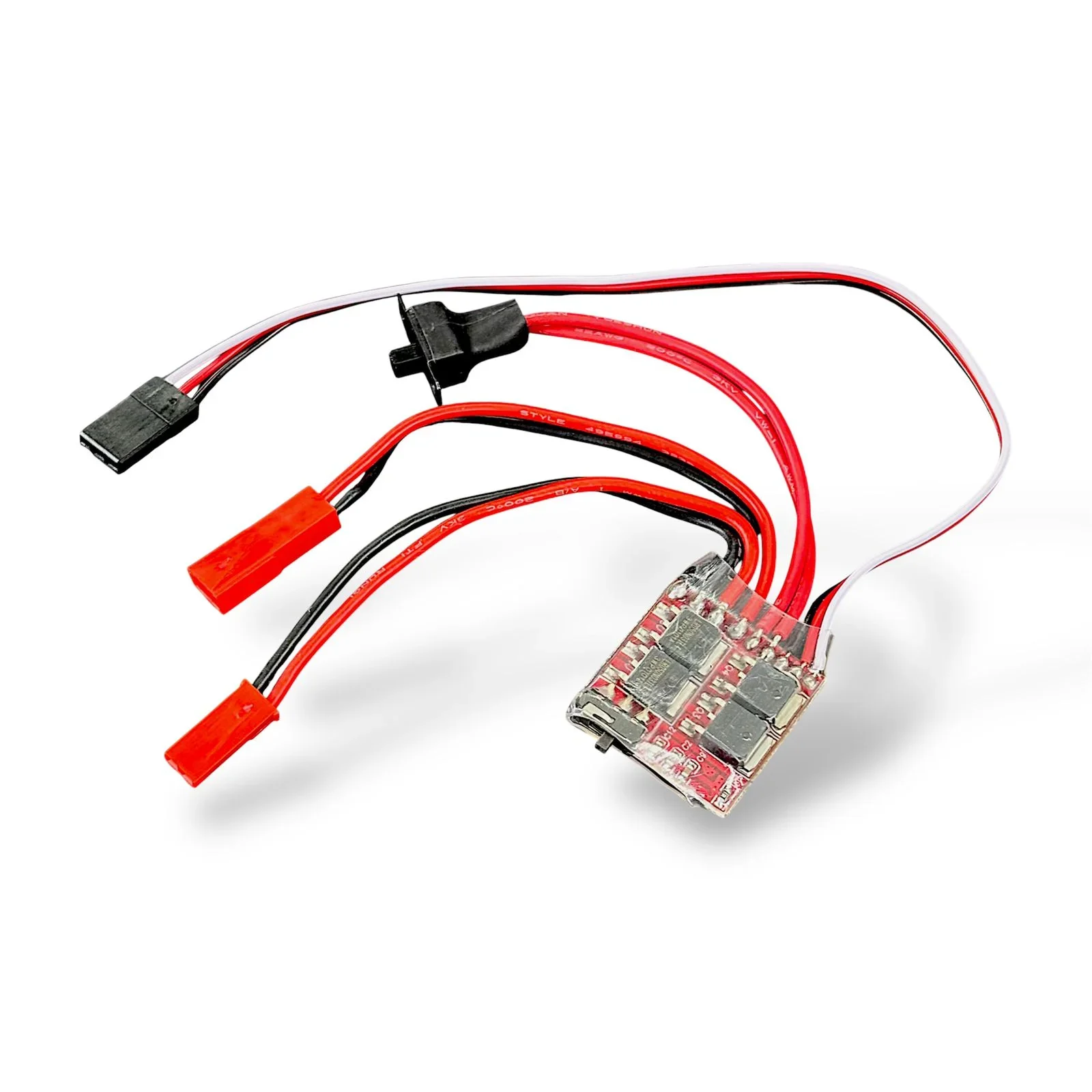

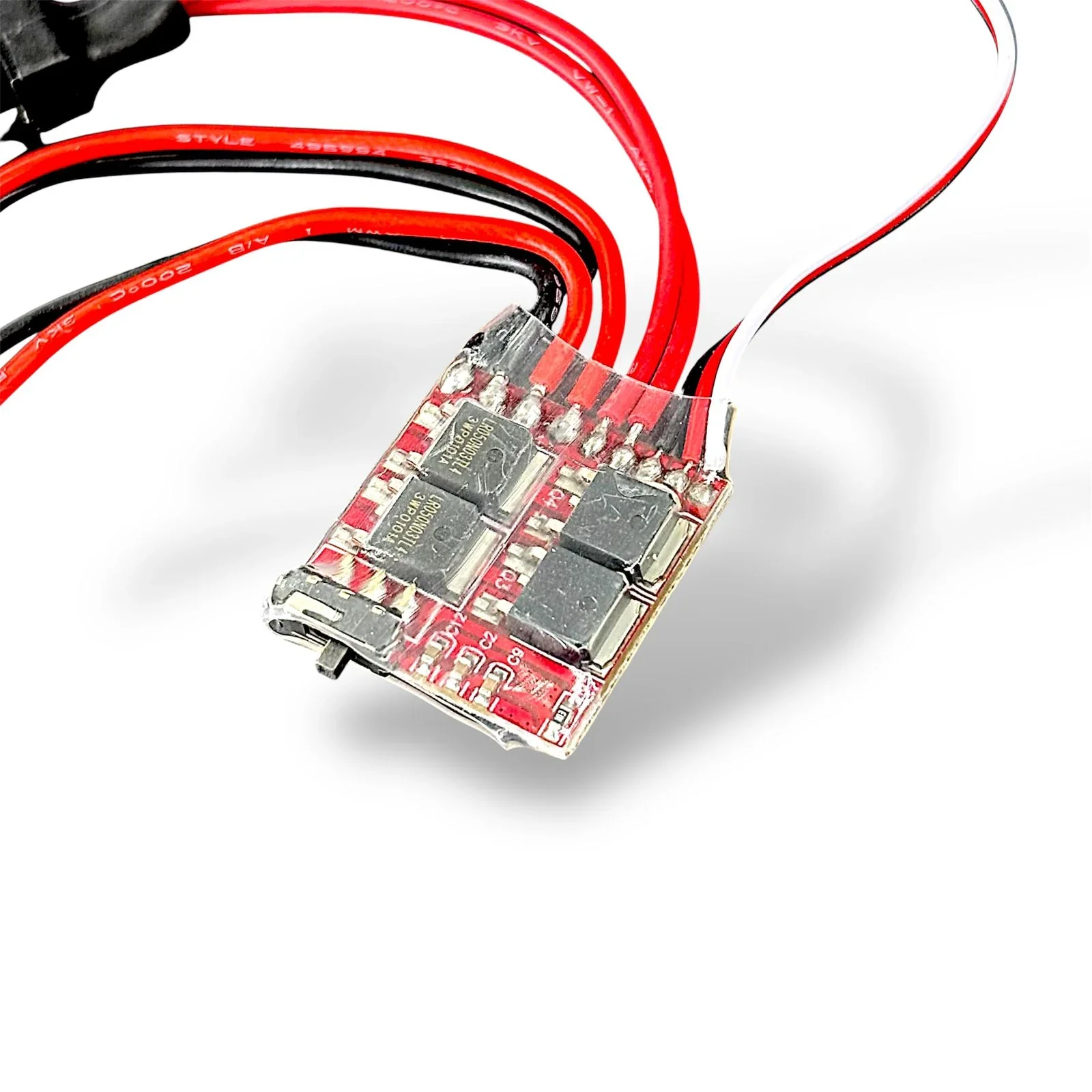

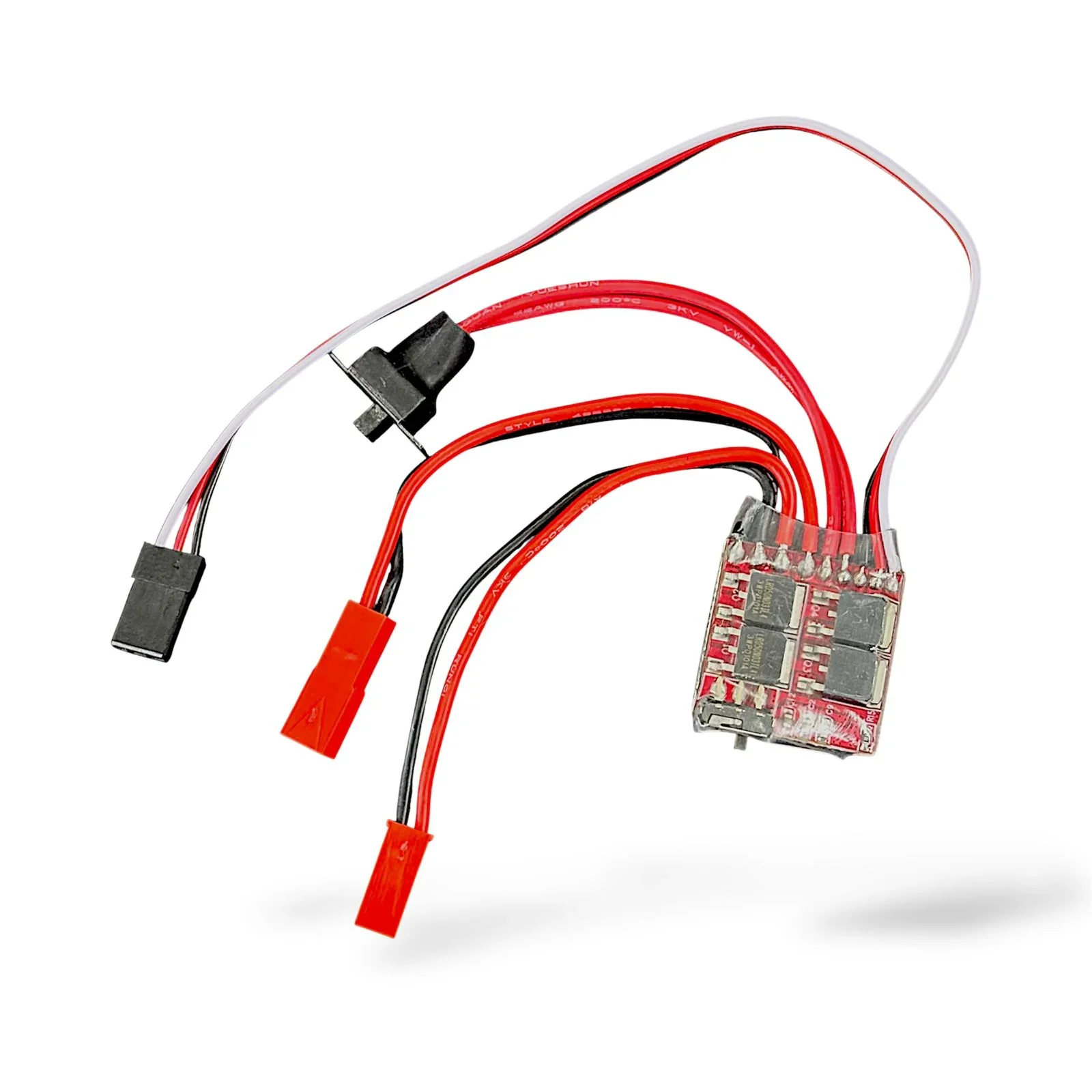

20A Brushed Electronic Speed Controller ESC | DC Motor Speed Control for RC Cars, Boats & Robotics Projects

Technical Specifications

• Product Type: Brushed Electronic Speed Controller (ESC)

• Current Rating: 20A Continuous

• Motor Type Supported: Brushed DC Motor

• Input Voltage: 4.2V – 8.4V DC (1–2S LiPo Compatible)

• Control Signal: Standard RC PWM Signal

• Direction Control: Forward / Reverse / Brake

• Cooling: Built-in Heat Dissipation Design

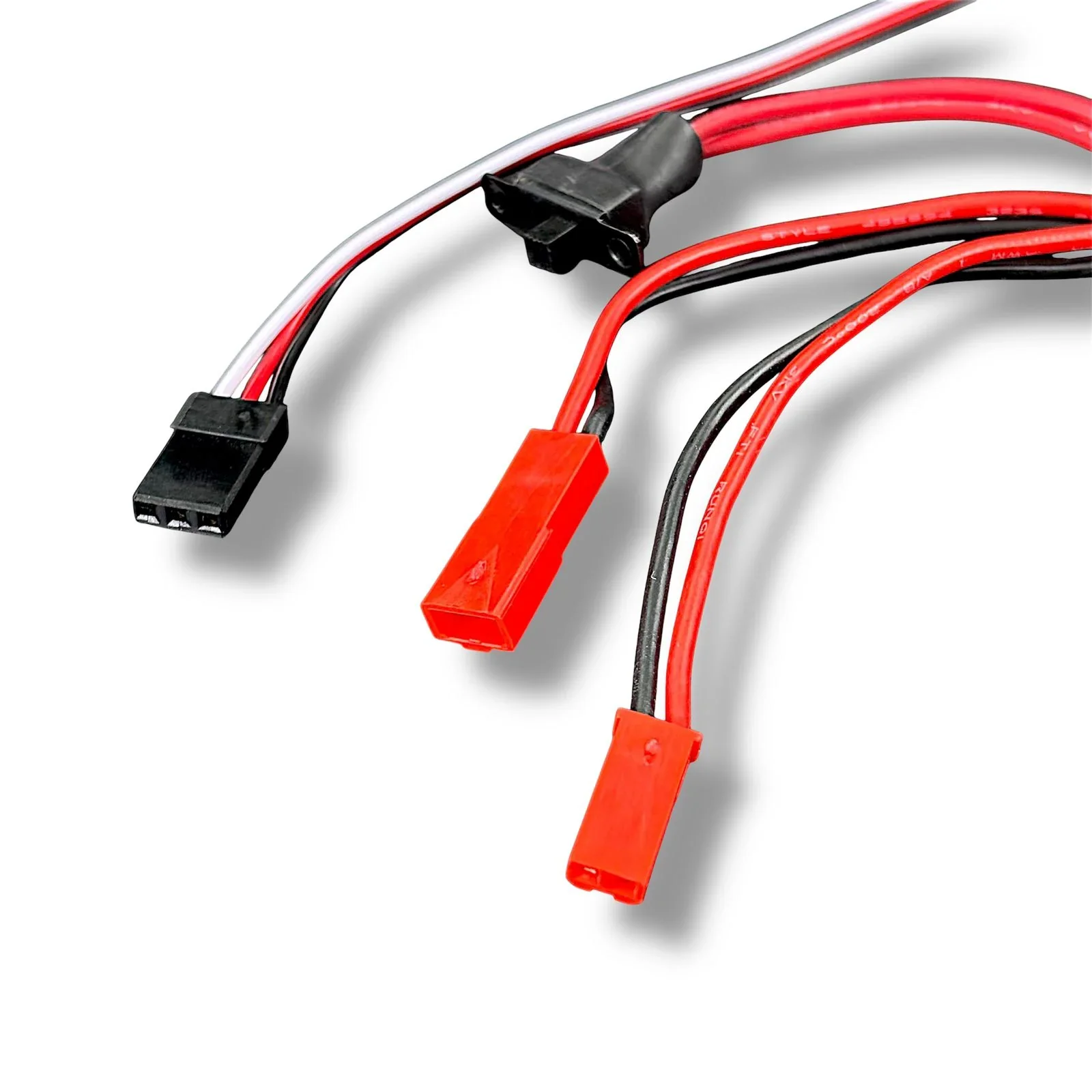

• Connector Type: Pre-soldered Motor & Power Wires

• Application: RC Vehicles, Robotics, DIY Projects

• Compatibility: RC Receivers, Arduino PWM Control

Description

The 20A Brushed Electronic Speed Controller (ESC) is designed to control the speed and direction of brushed DC motors. Ideal for RC cars, boats, and robotics projects, this compact ESC provides smooth throttle control and reliable motor performance.
