17HS4401 NEMA 17 Stepper Motor 40mm | 1.5A Bipolar High Torque Stepper Motor for CNC, 3D Printers & Robotics
| Parameter | Specification |
|---|---|
| Model | 17HS4401 |
| Standard | NEMA 17 |
| Motor Type | Bipolar Stepper Motor |
| Step Angle | 1.8° (200 Steps/Rev) |
| Rated Voltage | 3.8V |
| Rated Current | 1.5A / Phase |
| Number of Phases | 2 |
| Detent Torque | 38 mN.m |
| Rotor Inertia | 45 g.cm² |

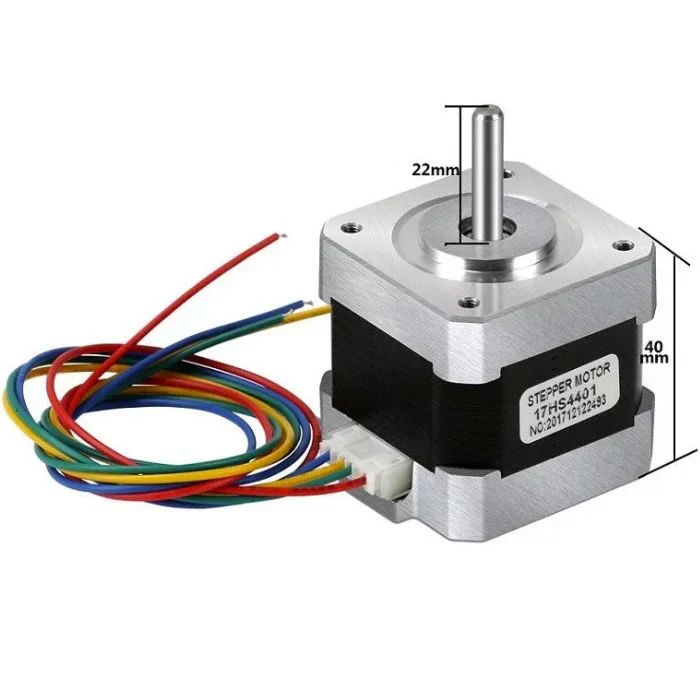

| Body Length | 40mm |
| Weight | 300g |
Description
The 17HS4401 NEMA 17 Stepper Motor is a high-performance bipolar stepper motor featuring a 1.8° step angle, 1.5A rated current, and compact 40mm body length. It is widely used in 3D printers, CNC machines, robotics, camera sliders, and precision motion control applications.
$2.00
Original: $5.72
-65%17HS4401 NEMA 17 Stepper Motor 40mm | 1.5A Bipolar High Torque Stepper Motor for CNC, 3D Printers & Robotics—
$5.72
$2.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Parameter | Specification |
|---|---|
| Model | 17HS4401 |
| Standard | NEMA 17 |
| Motor Type | Bipolar Stepper Motor |
| Step Angle | 1.8° (200 Steps/Rev) |
| Rated Voltage | 3.8V |
| Rated Current | 1.5A / Phase |
| Number of Phases | 2 |
| Detent Torque | 38 mN.m |
| Rotor Inertia | 45 g.cm² |
| Body Length | 40mm |
| Weight | 300g |
Description
The 17HS4401 NEMA 17 Stepper Motor is a high-performance bipolar stepper motor featuring a 1.8° step angle, 1.5A rated current, and compact 40mm body length. It is widely used in 3D printers, CNC machines, robotics, camera sliders, and precision motion control applications.
